Air flows horizontally across the product toward the exhaust side.
Advantages
- Simple construction
- Lower investment
- Easy maintenance
- Suitable for general industrial painting
Air is introduced from the front/top and exhausted through side areas.
Advantages
- Good overspray control
- Suitable for larger products
- Improved airflow compared with simple open-face configurations

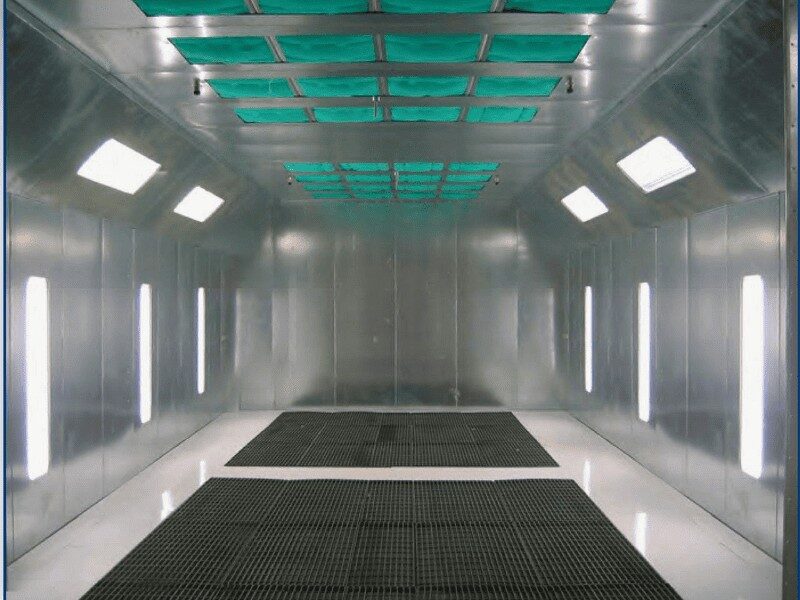

Air enters from above and moves downward toward floor-level extraction.
Advantages
- Excellent overspray control
- Reduced contamination
- High-quality finish
- Suitable for premium coating applications
